BOOT (FILLER HOSE,VLRUB) FROM IDLE SPEED ACTUATOR TO CONNECTOR Catalog Model Group Subgroup 67M 116960 7 70 478 116960 7 70 67M 116961 7 70 478 116961 7 70 288 116962 7 70 67M 116962 7 70 478 116962 7 70 682 116963 7 70 288 116963 7 70 478 116963 7 70 322 117962 7 70 322 117963 7 70 469 117963 7 70
219 220S 220SE SEDAN, COUPE AND CABRIOLETArticle code: v.nr.1808880198
Its purpose is to seal and funnel the air flowing in from the grille directly into the radiator for maximum cooling.Includes 28” of the rubber extrusion and (6) barrel bolts 50-0118 to attach the extrusion to the frame.One kit will do one car.W128 220SE W128 220SE Grille Air Seal Installation instructions August 14, 2019 Rev. 3/22/20 The purpose of the seal is to direct the airflow from the grille on the hood, directly into the radiator to achieve maximum cooling. The seal was only used on the W128 220SE fuel injected cars. Picture 1 is an original seal still intact. The carbureted 220S models did not have the factory welded bracket on the radiator support that retains this seal. Because the seal was part of the radiator support as an assembly from the factory, it does not have its own separate part number and has never been available separately. 1) Remove old rubber seal strip. Rivets will have to be cut and pried off (See pictures 4 and 6). Be careful not to distort the bracket that is welded to the radiator support. 2) Cut two strips from the supplied cord, 11” long and 14” long. The shorter end is on the driver’s side and the longer on the passenger side. The tops of the extrusion are mounted flush with top of the welded metal “L” bracket on the radiator support (see picture 3). 3) Holes in the rubber strips will need to be punched. A leather punch tool is inexpensive and very helpful in this process (See picture 7). The Barrel screws require a 4mm hole and find the die on the leather punch that is slightly bigger than 4mm. 4) The extrusion is positioned such that the longer leg of the extrusion is on the outward side of the bracket. The shorter leg is on the inner side (See picture 2). 5) After marking the position of the holes using the bracket holes as a guide, punch holes in the extrusion (See Picture 8). 6) The barrel screw assembly is a two piece unit. One piece has a hollow threaded barrel with a flat smooth head (See picture 13). This smooth head should be facing outward to closely resemble the factory rivet head. The other piece has a threaded shaft and the head has a slotted drive (See picture 14). This piece should face the inside. The slot in the face is the drive to tighten the assembly using a flat screwdriver. 7) Install the outer facing barrel pieces into the extrusion first (See picture 9). Slide the extrusion over the bracket so that both legs straddle the bracket. You should be able to push the barrel through the bracket hole and into the punched hole in the inner (shorter) leg (See picture 10). Once it is all positioned, screw the piece with the slotted head into the barrel piece (See picture 11). The leg thickness of the rubber piece is designed with adequate compression so that the barrel screw can be tightened until snug (See picture 12). 8) For the uppermost screw, there is limited access to tighten the inner piece. Use a small screwdriver blade in the slot to accomplish this (See picture 15). 9) Make a cut into the right side (passenger) seal (See picture 16). This will allow the support bar across the grill to rest against the seal without deforming it.
190SL. 300SL HEADLIGHT RING SEAL with European type Headlights ONLY105Ch. 219120Ch. 180 Series121Ch. 190SL, 190D, 190, 190Db, 190b128Ch. 220SE180Ch. 220S187Ch. 220188Ch. 300Sc198Ch. 300SL Coupe

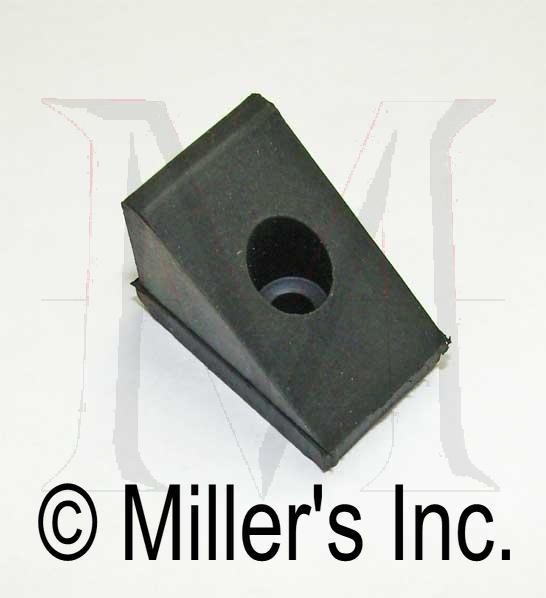

BLACK RUBBER TRIANGULAR SHAPED BUFFER MOUNTED ON THE INNER FENDER WELL TO SUPPORT THE HOOD TO BODY WHEN HOOD IS IN THE DOWN POSITION. 4 PER CAR FOR ALL 180s, 190s, 220S, 220SEs, SEDANS, COUPES, AND CONVERTIBLES. 2 PER CAR FOR ALL 107S, 108S, 109S
SAME LEFT OR RIGHT, 2 PER CARArticle code: v.nr.182053
180,190,220S,220SE SEDANS ONLYArticle code: v.nr.180811029610
Passenger Side 190SL or 220SSE Coupe or ConvertibleArticle code: v.nr.MP824AA
As used on Bosch four and five pin relaysNeed two grommets per relay.Note: the grommet does not come with the brass insert.However, it is very easy to polish the old brass insert and install it into the rubber grommet.
FACTORY ORIGINAL. THE WHITE POWDER IS MOLD RELEASE WAX.Article code: v.nr.1112680397
