KIT NOT AVAILABLE AT THIS TIMEArticle code: v.nr.0005860309

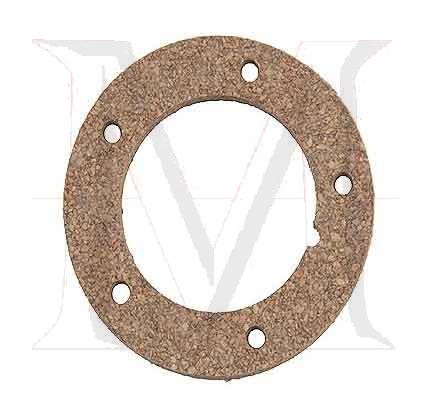

CORK GASKET FOR FUEL TANK SENDER UNIT.Article code: v.nr.1104710180
SEAL RING 02-0062 SOLD SEPERATELYArticle code: v.nr.1365010054
This must be modified at the filler neck to work on a four door sedan.Article code: v.nr.1214700801
TANK NOT AVAILABLE AT THIS TIME. USE TANK # 47-0001 AND RETROFIT FILLER NECK FROM OLD TANK TO NEW TANK.Article code: v.nr.1204703001
Mercedes-Benz 220S year vehicle attributes Quantity 1960 1 1961 1 1962 1 1963 1 1964 1 1965 1 Mercedes-Benz 220Sb year vehicle attributes Quantity 1959 L6 2.2L 180.941 1 1959 180.941 1 1960 L6 2.2L 180.941 1 1960 180.941 1 Mercedes-Benz 220b year vehicle attributes Quantity 1959 L6 2.2L 180.940 1 1959 180.940 1 1960 L6 2.2L 180.940 1 1960 180.940 1
SUPERCEDED GASKET ONLY IS AVAILABLE UNDER PART 01-0078 Cylinder Head Gasket kit Mercedes-Benz 230S year vehicle attributes 1966 1967 Mercedes-Benz 250S year vehicle attributes 1966 L6 2.5L 108.920 1966 1967 L6 2.5L 108.920 1967 1968 L6 2.5L 108.920
Catalog Model Group Subgroup 42 116984 1 65 42 116985 1 65 67H 117982 1 65 67H 117983 1 65 67H 117985 1 65 43 117985 1 65 67H 117986 1 65 43 117986 1 65
Catalog Model Group Subgroup 233 127981 1 1 233 127982 1 1 233 127984 1 1
Fits for all M108 Gas Engine, W108, M114 Gas Engine, W114, M115 Gas Engine, W115, M121 Gas Engine, W110, W120, W121, R121, M130 Gas Engine, W108, W114, M180 Gas Engine, W105, W110, W111, W114, W187 Chassis Fits the following gasoline Engines:M108.920 & .924M114.920, .923, .980 & .981M115.900, .920, .921, .922, .923, .924, .926, .927, .928, .929, .932, .933, .934, .935, .938 & .939M121.920, .921, .922, .923, .924, .926, .927, .928, .929, .940, .941, .942, .943 & .944M130.920, .921 & .923M180.921, .924, .940, .941, .945, .947, .949, .950, .951, .954 & .955
Seal valve chamber cover for Mercedes 170V-170S, 180 (M136)There are 2 versions, please choose above.A: later version, rounded on one side more This Part NumberB: early version, rectangular DB Vergl.Nr .: 1360150022
Its purpose is to seal and funnel the air flowing in from the grille directly into the radiator for maximum cooling.Includes 28” of the rubber extrusion and (6) barrel bolts 50-0118 to attach the extrusion to the frame.One kit will do one car.W128 220SE W128 220SE Grille Air Seal Installation instructions August 14, 2019 Rev. 3/22/20 The purpose of the seal is to direct the airflow from the grille on the hood, directly into the radiator to achieve maximum cooling. The seal was only used on the W128 220SE fuel injected cars. Picture 1 is an original seal still intact. The carbureted 220S models did not have the factory welded bracket on the radiator support that retains this seal. Because the seal was part of the radiator support as an assembly from the factory, it does not have its own separate part number and has never been available separately. 1) Remove old rubber seal strip. Rivets will have to be cut and pried off (See pictures 4 and 6). Be careful not to distort the bracket that is welded to the radiator support. 2) Cut two strips from the supplied cord, 11” long and 14” long. The shorter end is on the driver’s side and the longer on the passenger side. The tops of the extrusion are mounted flush with top of the welded metal “L” bracket on the radiator support (see picture 3). 3) Holes in the rubber strips will need to be punched. A leather punch tool is inexpensive and very helpful in this process (See picture 7). The Barrel screws require a 4mm hole and find the die on the leather punch that is slightly bigger than 4mm. 4) The extrusion is positioned such that the longer leg of the extrusion is on the outward side of the bracket. The shorter leg is on the inner side (See picture 2). 5) After marking the position of the holes using the bracket holes as a guide, punch holes in the extrusion (See Picture 8). 6) The barrel screw assembly is a two piece unit. One piece has a hollow threaded barrel with a flat smooth head (See picture 13). This smooth head should be facing outward to closely resemble the factory rivet head. The other piece has a threaded shaft and the head has a slotted drive (See picture 14). This piece should face the inside. The slot in the face is the drive to tighten the assembly using a flat screwdriver. 7) Install the outer facing barrel pieces into the extrusion first (See picture 9). Slide the extrusion over the bracket so that both legs straddle the bracket. You should be able to push the barrel through the bracket hole and into the punched hole in the inner (shorter) leg (See picture 10). Once it is all positioned, screw the piece with the slotted head into the barrel piece (See picture 11). The leg thickness of the rubber piece is designed with adequate compression so that the barrel screw can be tightened until snug (See picture 12). 8) For the uppermost screw, there is limited access to tighten the inner piece. Use a small screwdriver blade in the slot to accomplish this (See picture 15). 9) Make a cut into the right side (passenger) seal (See picture 16). This will allow the support bar across the grill to rest against the seal without deforming it.
PLEASE COMPARE YOUR HEAD GASKET TO PICTURE. THERE ARE THREE VERSIONS.Article code: v.nr.1210164220
PLEASE COMPARE YOUR HEAD GASKET TO PICTURE. THERE ARE THREE VERSIONS.Article code: v.nr.1210164120
from Early 280SLLATER 280SL FROM ENG. # 10-004597 & 12-007230. WILL NOT INCLUDE V/C GASKET # 01-2053 OR VALVE SEALS # 05-2074.Article code: v.nr.1300103521
