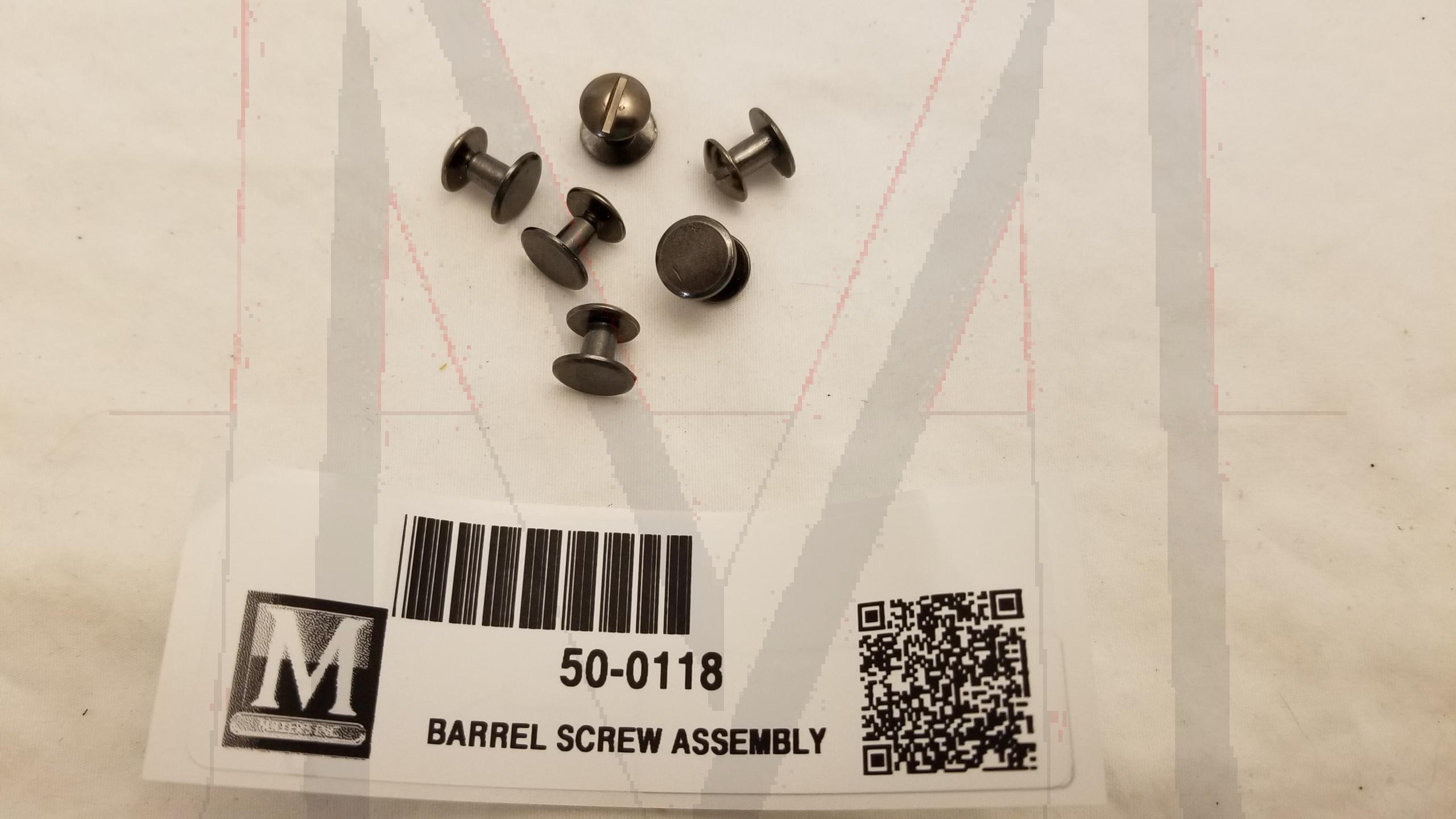

BARREL SCREW ASSEMBLY
US$3.00*
Barrel Screw Assembly Used in counjunction with the 50-0117 Rubber Grill Seal.
W128 220SE cars

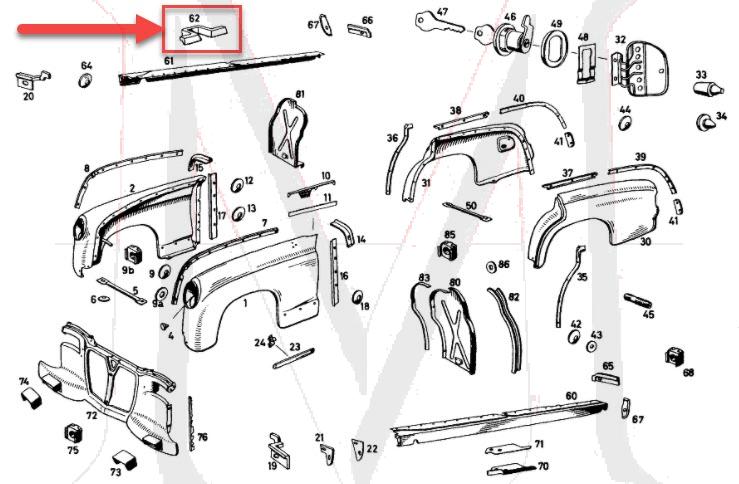

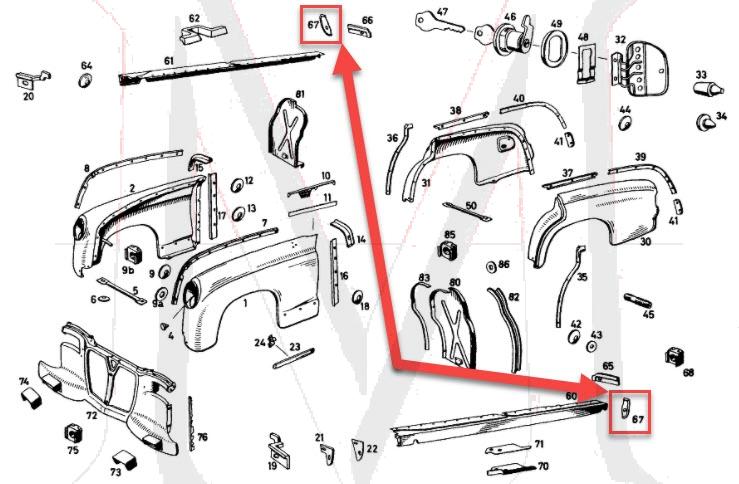

BODY SEAL
US$24.57*
GASKET (SEAL) 180B 180C 180Db 180dcAT CENTER PILLAR UNDER ENTRANCE PLATES 3,5X9,5 DIN 7981 FOR ENTRANCE PLATE AT BODY M 6X20 DIN 933-8 G FOR ENTRANCE PLATE AT BASE PLATE

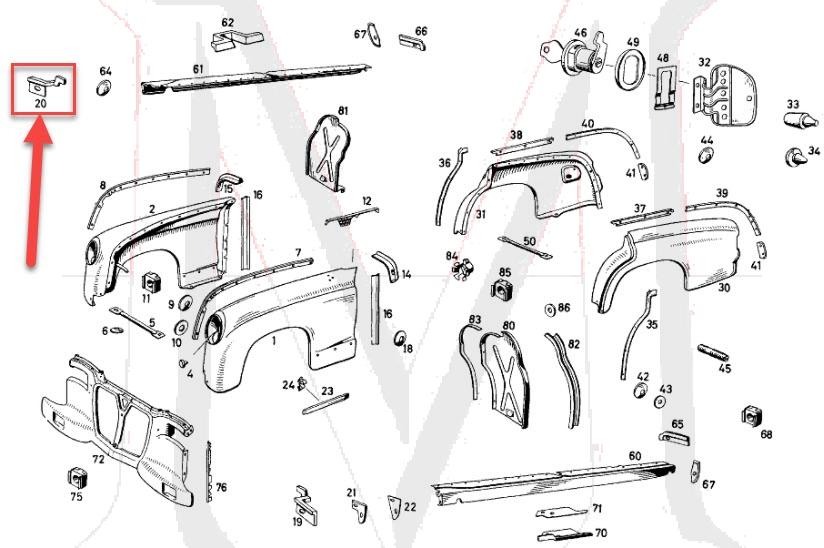

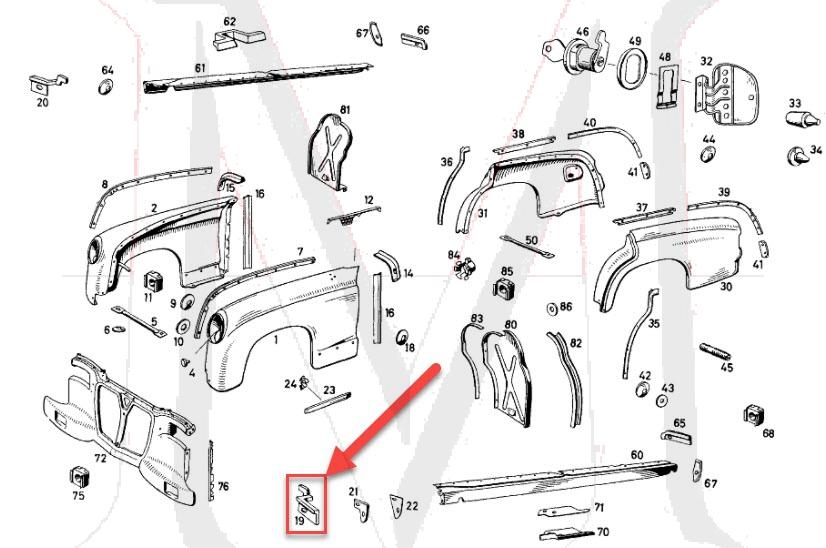

BODY SEAL
US$9.99*
GASKET (SEAL) BETWEEN ENTRANCE SILL AND REAR FENDER, LEFT AND RIGHT, OUTSIDE
105 120 121 128 180

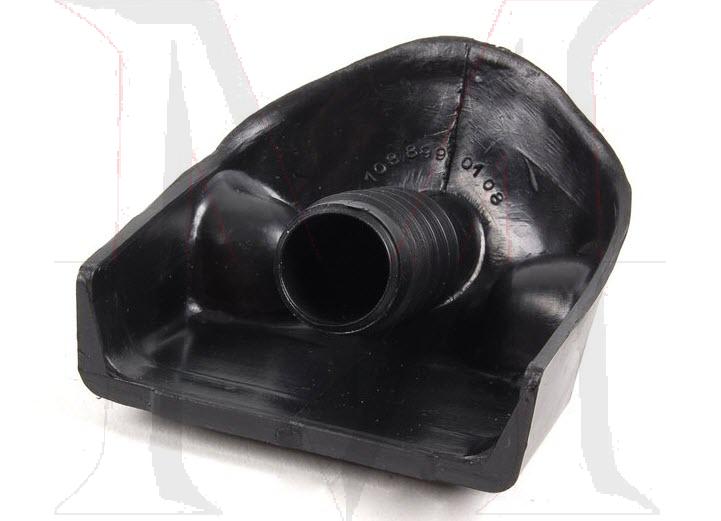

CAP,JACK HOLE
US$18.00*
JACK HOLE CAPS
Mercedes Benz
190C
Base
L4 1.9L
1963
U/K
Mercedes Benz
190C
Base
L4 1.9L
1964
U/K
Mercedes Benz
190C
Base
L4 1.9L
1965
U/K
Mercedes Benz
190DC
Base
L4 2.0L
1963
U/K
Mercedes Benz
190DC
Base
L4 2.0L
1964
U/K
Mercedes Benz
190DC
Base
L4 2.0L
1965
U/K
Mercedes Benz
200
Base
L4 2.0L
1966
U/K
Mercedes Benz
200
Base
L4 2.0L
1967
U/K
Mercedes Benz
200
Base
L4 2.0L
1968
U/K
Mercedes Benz
200D
Base
L4 2.0L
1966
U/K
Mercedes Benz
200D
Base
L4 2.0L
1967
U/K
Mercedes Benz
200D
Base
L4 2.0L
1968
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1960
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1961
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1962
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1963
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1964
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1965
U/K
Mercedes Benz
220SE
Base
L6 2.2L
1966
U/K
Mercedes Benz
230
Base
L4 2.3L
1974
U/K
Mercedes Benz
230
Base
L6 2.3L
1966
U/K
Mercedes Benz
230
Base
L6 2.3L
1967
U/K
Mercedes Benz
230
Base
L6 2.3L
1968
U/K
Mercedes Benz
230
Base
L6 2.3L
1969
U/K
Mercedes Benz
230S
Base
L6 2.3L
1966
U/K
Mercedes Benz
230S
Base
L6 2.3L
1967
U/K
Mercedes Benz
250S
Base
L6 2.5L
1966
U/K
Mercedes Benz
250S
Base
L6 2.5L
1967
U/K
Mercedes Benz
250SE
Base
L6 2.5L
1966
U/K
Mercedes Benz
250SE
Base
L6 2.5L
1967
U/K
Mercedes Benz
280S
Base
L6 2.8L
1968
U/K
Mercedes Benz
280S
Base
L6 2.8L
1969
U/K
Mercedes Benz
280S
Base
L6 2.8L
1970
U/K
Mercedes Benz
280S
Base
L6 2.8L
1971
U/K
Mercedes Benz
280SE
4.5
V8 4.5L
1972
U/K
Mercedes Benz
280SE
4.5
V8 4.5L
1973
U/K
Mercedes Benz
280SE
Base
L6 2.8L
1968
U/K
Mercedes Benz
280SE
Base
L6 2.8L
1969
U/K
Mercedes Benz
280SE
Base
L6 2.8L
1970
U/K
Mercedes Benz
280SE
Base
L6 2.8L
1971
U/K
Mercedes Benz
280SE
Base
L6 2.8L
1972
U/K
Mercedes Benz
280SE
Base
V8 3.5L
1970
U/K
Mercedes Benz
280SEL
Base
L6 2.8L
1968
U/K
Mercedes Benz
280SEL
Base
L6 2.8L
1969
U/K
Mercedes Benz
280SEL
Base
L6 2.8L
1970
U/K
Mercedes Benz
280SEL
Base
L6 2.8L
1971
U/K
Mercedes Benz
280SEL
Base
V8 4.5L
1972
U/K
Mercedes Benz
280SEL
Base
V8 4.5L
1973
U/K
Mercedes Benz
300SEL
Base
L6 2.8L
1968
U/K
Mercedes Benz
300SEL
Base
L6 2.8L
1969
U/K
Mercedes Benz
300SEL
Base
L6 3.0L
1963
U/K
Mercedes Benz
300SEL
Base
L6 3.0L
1964
U/K
Mercedes Benz
300SEL
Base
L6 3.0L
1965
U/K
Mercedes Benz
300SEL
Base
L6 3.0L
1966
U/K
Mercedes Benz
300SEL
Base
L6 3.0L
1967
U/K
Mercedes Benz
300SEL
Base
V8 3.5L
1970
U/K
Mercedes Benz
300SEL
Base
V8 3.5L
1971
U/K
Mercedes Benz
300SEL
Base
V8 4.5L
1972
U/K
Mercedes Benz
300SEL
Base
V8 4.5L
1973
U/K
Mercedes Benz
300SEL
Base
V8 6.3L
1970
U/K
Mercedes Benz
300SEL
Base
V8 6.3L
1971
U/K

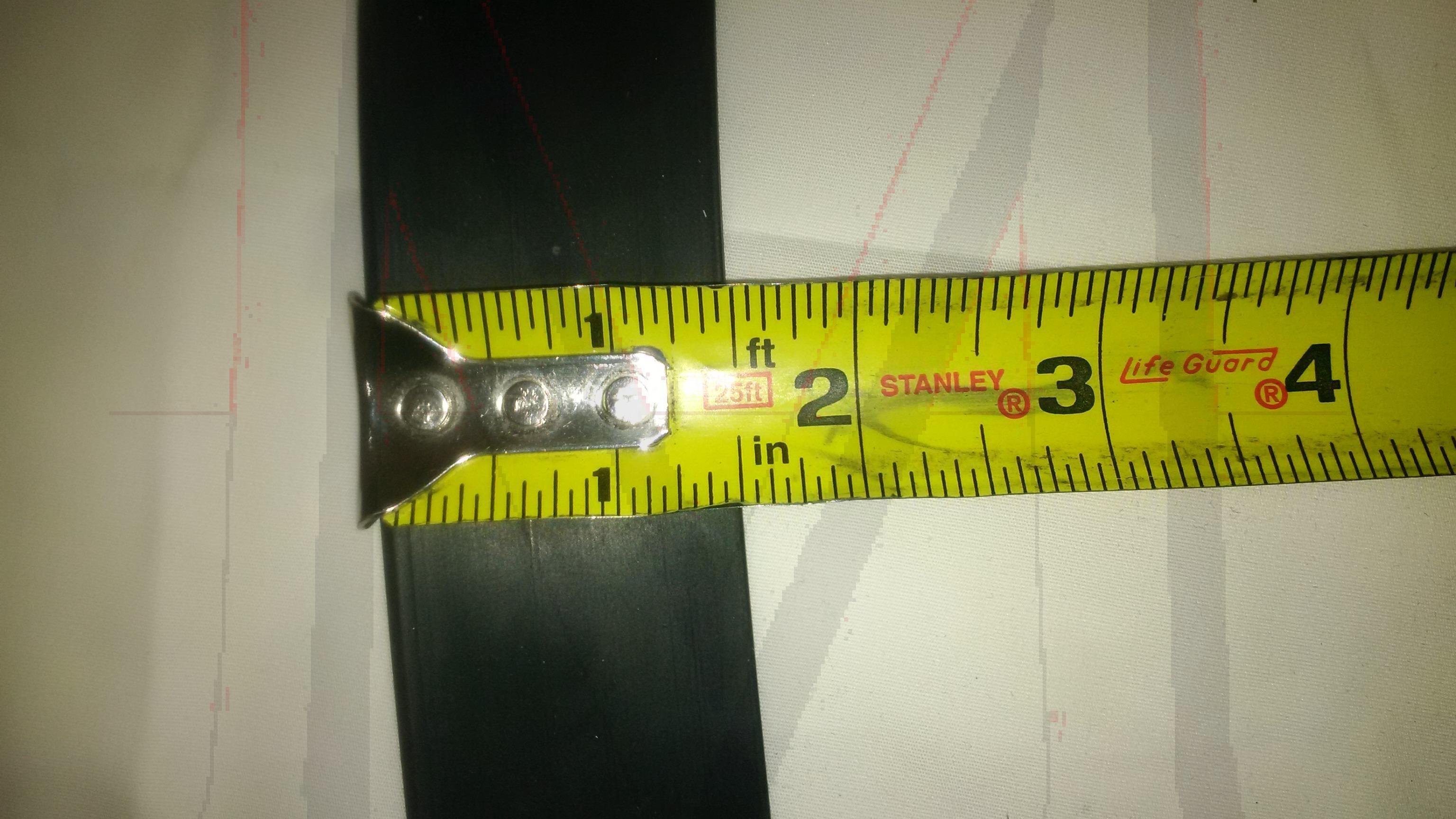

FENDER WELT - PER METER
US$22.00*
SOLD BY THE METER - AFTERMARKET Article code: v.nr.Q4980880C88005C<

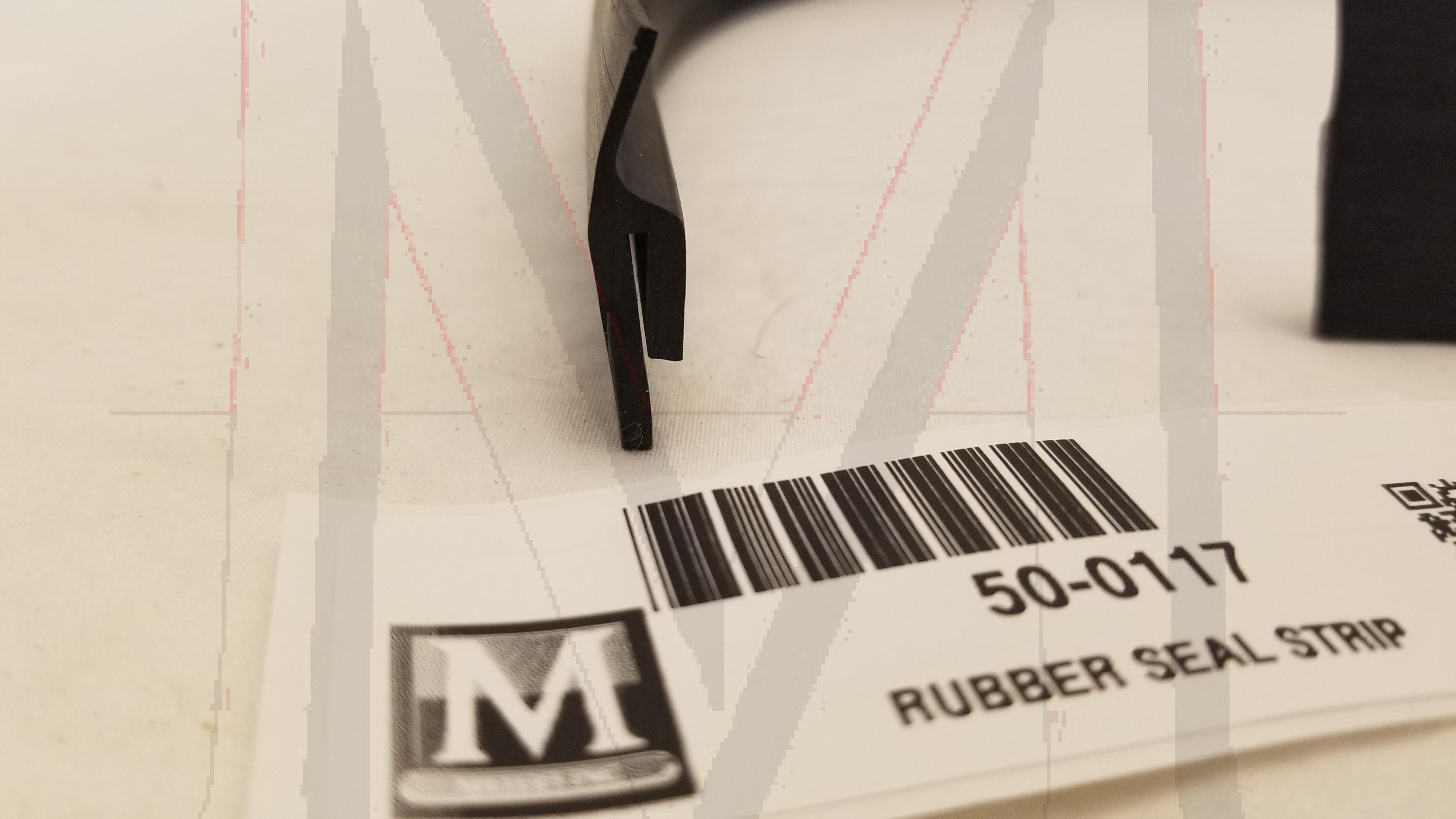

GRILLE AIR SEAL
US$22.00*
Its purpose is to seal and funnel the air flowing in from the grille directly into the radiator for maximum cooling.Includes 28” of the rubber extrusion and (6) barrel bolts 50-0118 to attach the extrusion to the frame.One kit will do one car.W128 220SE
W128 220SE Grille Air Seal
Installation instructions
August 14, 2019
Rev. 3/22/20
The purpose of the seal is to direct the airflow from the grille on the hood, directly into the radiator to achieve maximum cooling. The seal was only used on the W128 220SE fuel injected cars. Picture 1 is an original seal still intact. The carbureted 220S models did not have the factory welded bracket on the radiator support that retains this seal. Because the seal was part of the radiator support as an assembly from the factory, it does not have its own separate part number and has never been available separately.
1) Remove old rubber seal strip. Rivets will have to be cut and pried off (See pictures 4 and 6). Be careful not to distort the bracket that is welded to the radiator support.
2) Cut two strips from the supplied cord, 11” long and 14” long. The shorter end is on the driver’s side and the longer on the passenger side. The tops of the extrusion are mounted flush with top of the welded metal “L” bracket on the radiator support (see picture 3).
3) Holes in the rubber strips will need to be punched. A leather punch tool is inexpensive and very helpful in this process (See picture 7). The Barrel screws require a 4mm hole and find the die on the leather punch that is slightly bigger than 4mm.
4) The extrusion is positioned such that the longer leg of the extrusion is on the outward side of the bracket. The shorter leg is on the inner side (See picture 2).
5) After marking the position of the holes using the bracket holes as a guide, punch holes in the extrusion (See Picture 8).
6) The barrel screw assembly is a two piece unit. One piece has a hollow threaded barrel with a flat smooth head (See picture 13). This smooth head should be facing outward to closely resemble the factory rivet head. The other piece has a threaded shaft and the head has a slotted drive (See picture 14). This piece should face the inside. The slot in the face is the drive to tighten the assembly using a flat screwdriver.
7) Install the outer facing barrel pieces into the extrusion first (See picture 9). Slide the extrusion over the bracket so that both legs straddle the bracket. You should be able to push the barrel through the bracket hole and into the punched hole in the inner (shorter) leg (See picture 10). Once it is all positioned, screw the piece with the slotted head into the barrel piece (See picture 11). The leg thickness of the rubber piece is designed with adequate compression so that the barrel screw can be tightened until snug (See picture 12).
8) For the uppermost screw, there is limited access to tighten the inner piece. Use a small screwdriver blade in the slot to accomplish this (See picture 15).
9) Make a cut into the right side (passenger) seal (See picture 16). This will allow the support bar across the grill to rest against the seal without deforming it.

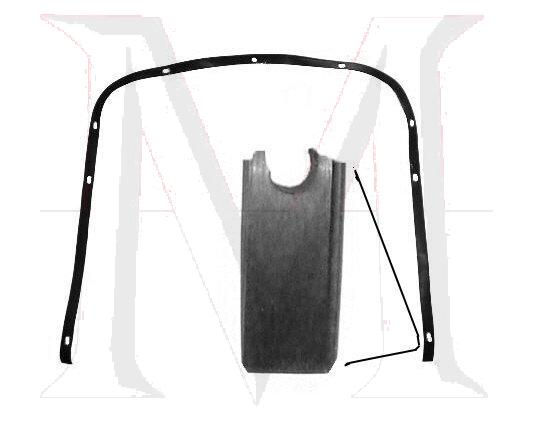

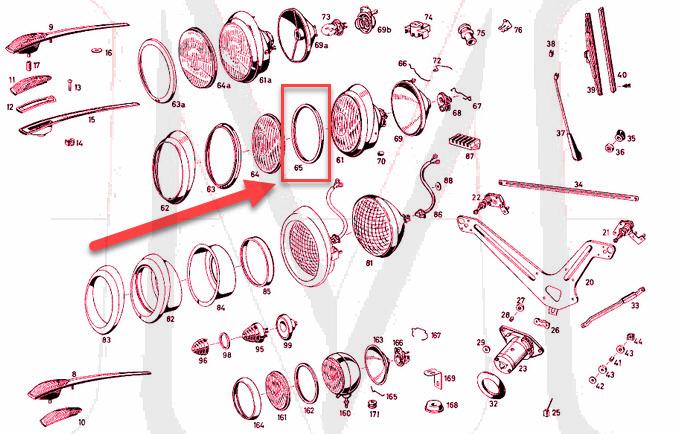

HEADLIGHT SEAL
US$15.00*
190SL. 300SL HEADLIGHT RING SEAL with European type Headlights ONLY105Ch. 219120Ch. 180 Series121Ch. 190SL, 190D, 190, 190Db, 190b128Ch. 220SE180Ch. 220S187Ch. 220188Ch. 300Sc198Ch. 300SL Coupe

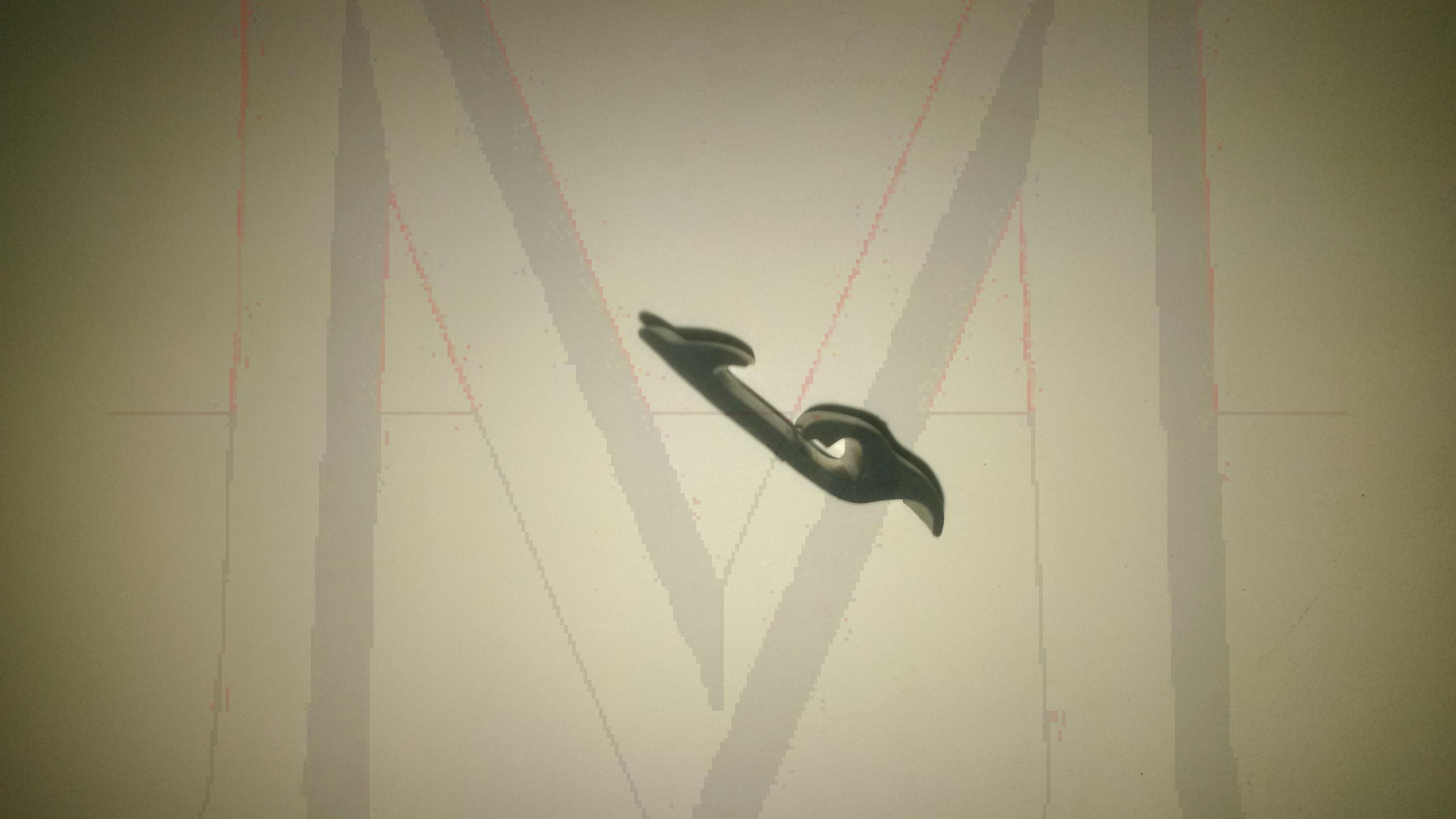

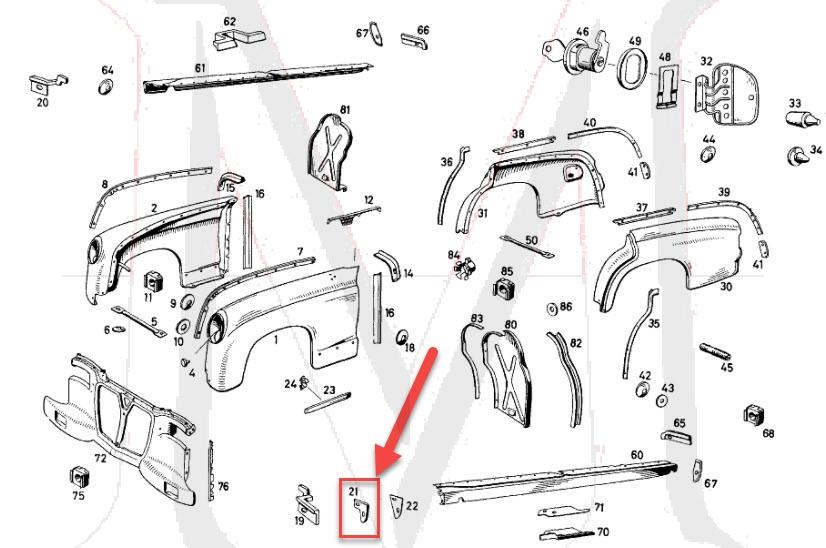

SEALING STRAP
US$23.17*
SEALING STRAP, RIGHTAT HINGE SIDE FOR FRONT MUDGUARD AT ENTRANCE PLATE PROFILE NO. 000 987 45 30

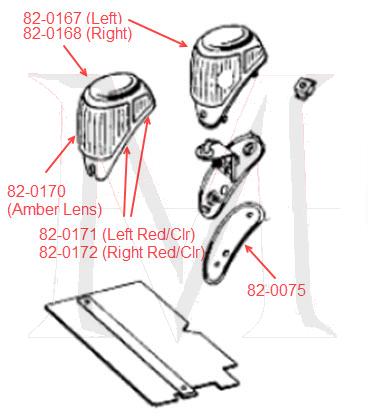

TURN SIGNAL LAMP SEAL
US$24.00*
TURN SIGNAL LAMP ELECTRICAL SEAL
THE PICTURE SHOWS A FLAT PEICE OF RUBBER, IT IS A TUBE THAT THE WIREING RUNS THROUGH
PICTURES WILL BE TAKEN ONCE WE GET ONE IN STOCK.
ROUND BODY 180 190
